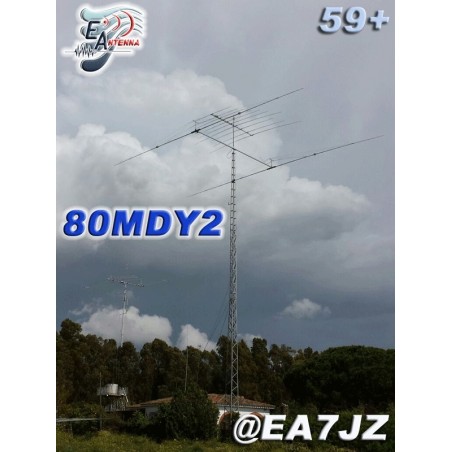

EANTENNA 80MDY2 ANTENNA DIRETTIVA 2 EL. 80M

EANTENNA 80MDY2 ANTENNA DIRETTIVA 2 EL. 80M HF DIRETTIVE

EANTENNA 80MDY2 ANTENNA DIRETTIVA 2 EL. 80M

2.981,66 €
IVA inclusa
EANTENNA
80MDY2
Quantità
Non disponibile


SPECIFICATION EAntenna 80MDY2
Elements: 2
Frequency Range: 3,5 ~ 3,8 MHz.*
Gain: (dBi) 6,52 dBi **
Gain: (dBi) 12,02 dBi ***
F/B: 27,79 dB
Wideband: <2,0:1: 110 kHz
SWR: 1,0:1 ~ 2,0:1
Impedance: 50 Ohm
Max. Power: 10 kW. ***
Boom Length: 10,25m. / 33,6'
Max. Element Lenght: 24,0 m. / 78,7'
Turning Radius: 12,6m / 41,3'
Wind Survival: ≥ 160kmh / ≥ 100mph
Weight: 140 Kg / 308 Pounds

* Total bandwidth with optional relay box
** Gain dBi (Gain over isotropic in free space).
*** Gain dBi at 20m above ground.
**** 5 kW Balun included, there are options of 10 kW.

CONTRUCTION DETAILS

4-DIBUJOS

BOOM SIZE ELEMENTS DIAMETERS ELEMENTS PLATES MAST PLATES
A = 80mm A = 60/55/50/45/40/35/30/25/2016/12mm Ø A = 150mm C = 40 A = 150mm
B = 8mm B = 2/1,5mm B = 4mm B = 10mm

80MDY2
