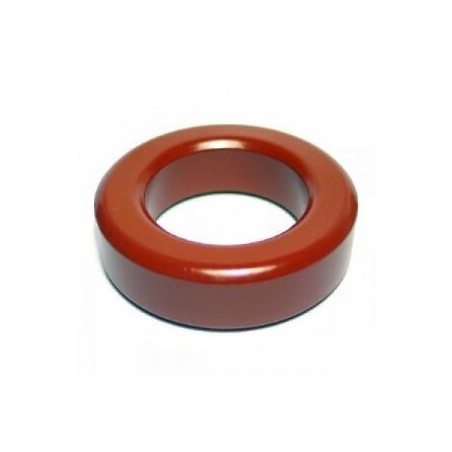

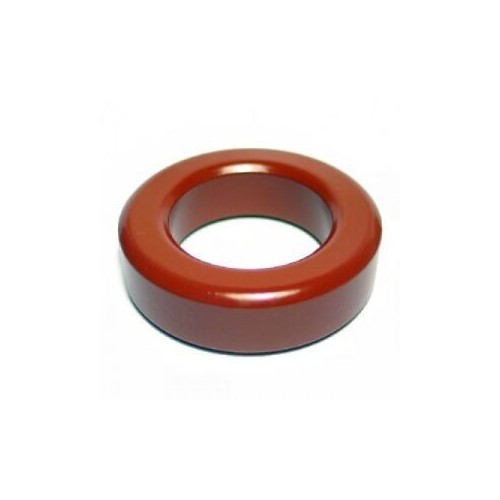

Toroide T200-2

Physical Dimensions



OD = 2.0 in / 50.8 mm +/- 0.025 in
ID = 1.25 / 31.8 mm +/- 0.025 in
Ht = .550 / 14.0 mm +/- 0.03 in
AL=11 +/- 5 % uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 95 productor:micrometals
Color Code = Red / Clear
Optimum Resonant Circuit Range
for highest Q and lowest core loss
250 KHz - 30 MHz
