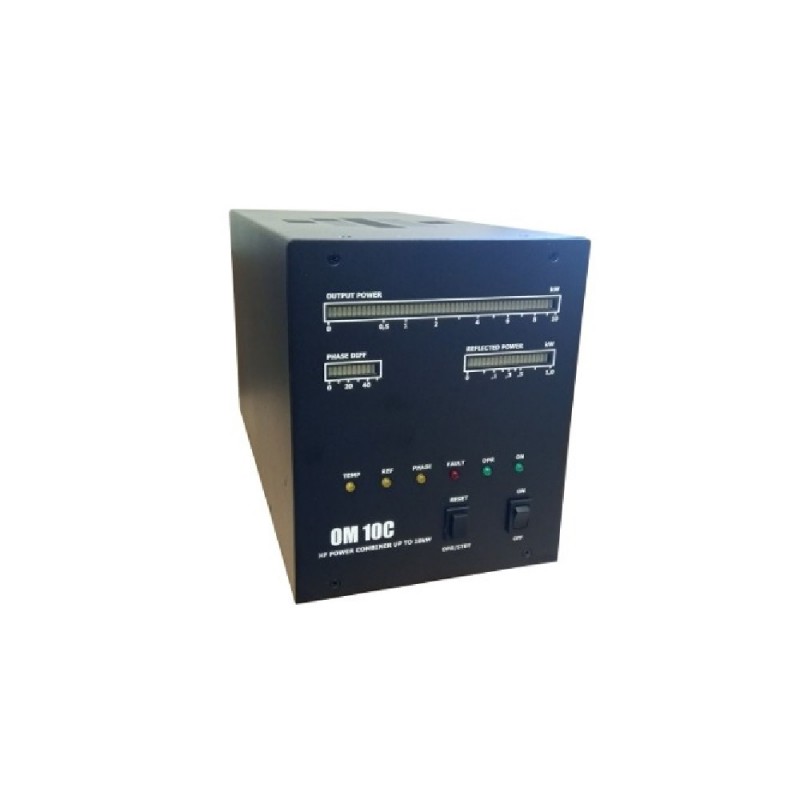

OM POWER OM10C
INFORMAZIONI
per L'ACQUISTO
The high power combiner OM10C is designed for all short wave amateur bands from 1.8 to 29.7 MHz and maximum 10kW PEP output power.
Specification of OM10C:
| Frequency coverage: | 1.8 – 29.7 MHz continuous |
| Power rating: | 10 kW PEP or continuous carrier into a matched load (VSWR below 1.2:1). Reduce the output at increased VSWR, linearly down to 5 kW at VSWR up to 2:1 |
| Input impedance: | 50 Ohm unbalanced, input UHF SO239 connector |
| SWR: | Less than 1,2 : 1 across band, input VSWR with 50 Ohm loads at the two splitter outputs: less than 1,2:1, 1,8-30MHz continuously (no tunings, no switching) |
| Output impedance: | 50 Ohm unbalanced, output 7/16“ connector |
| Insertion loss: | very low insertions loss, less than 0,3 dB |
| Bar graph indications: | - Output power in PEP |
| - Phase difference | |
| - Reflected power in kW | |
| LED indicators: | - ON status |
| - OPR (operate) | |
| - FAULT (faults indicator) | |
| - PHASE | |
| - Reflected Power | |
| - Temperature | |
| Mechanical parameters: | 165mm x 200mm x 350mm (width x height x depth) |
| Weight: | 8.1 kg |
OM10C
