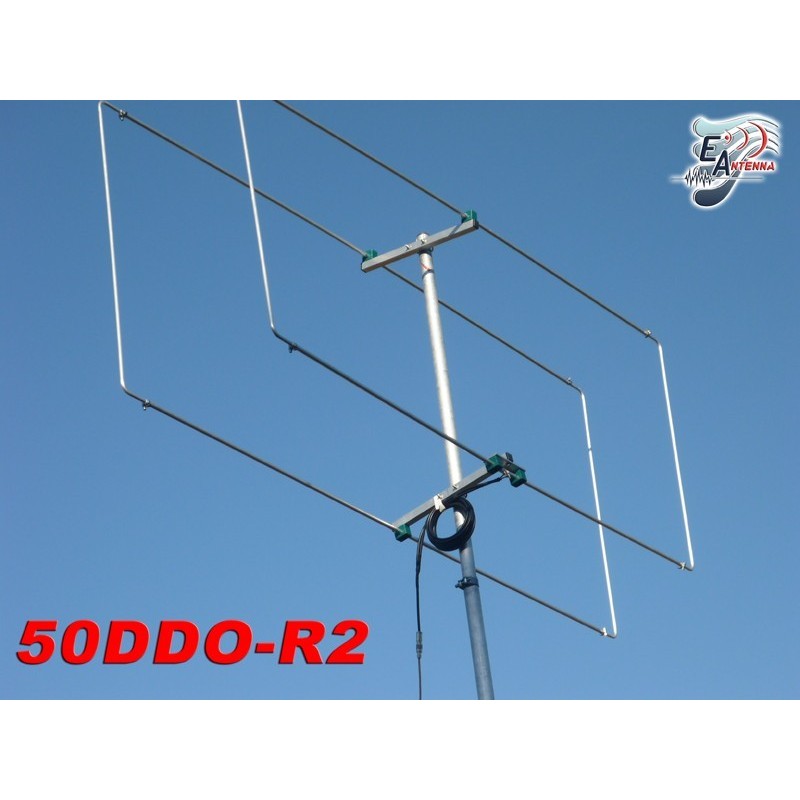

EANTENNA 50DDO-2 2EL. 50MHZ

EANTENNA 50DDO-2 2EL. 50MHZ HF VERTICALI

EANTENNA 50DDO-2 2EL. 50MHZ

138,80 €
IVA inclusa
EANTENNA
50DDO-2
Quantità
In pronta consegna

SPECIFICATION 50DDO-R2
Elements: 2
Frequency Range: 50,0~50,5MHz.
Gain: (dBi) 6,70 dBi *
Gain: (dBi) 12,61dBi **
F/B: 22,85 dB
SWR: 1,0:1~1,2:1
Impedance: 50 Ohm
Max. Power: 10 kW. ***
Boom Length: 0,45m / 17,72"
Turning Radius: 0,60m / 23,62"
Wind Survival: ≥ 160kmh / ≥ 100mph
Weight: 5,00 Kg. / 11,0 Pounds

* Gain dBi (Gain over isotropic in free space).
** Gain dBi at 20m above ground.
*** This antenan don't requires balun. The feeding is direct to the coax, through soldering to the ring terminals.

50DDO-2
