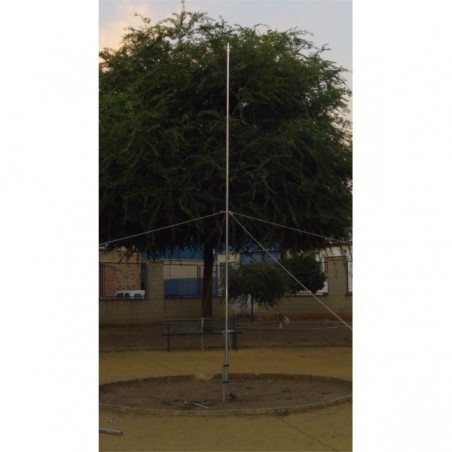

EANTENNA 20AVM ANTENNA VERTICALE 14MHZ

EANTENNA 20AVM ANTENNA VERTICALE 14MHZ HF VERTICALI

EANTENNA 20AVM ANTENNA VERTICALE 14MHZ

138,80 €
IVA inclusa
EANTENNA
20AVM
Quantità
In pronta consegna

Specifications 20AVM

  • All sections of the antenna is 2 mm for better wind resistance.
  • Board to mast, 3000x100mm with 6mm thick with U-bolts of M8 to the plate to the mast.
  • Simple and quick, because the pieces have a unique position.
  • Antenna very solid construction, and with a weight very acceptable.
SPECIFICATION EAntenna 20AVM
Frequency Range: 14.0 ~ 14.35 MHz
SWR: 1,1:1~1,4:1
Impedance: 50 Ohm
Max. Power: 5 kW.*
Height: 5.1 m / 16.7 '
Sections: 4
Diameters: 40/35/30/25mm
Wind Survival: 160kmh / ≥ 100mph**
Weight: 5.5 kg / 12.1 Pounds

* Does not include Balun, not necessary
** Wind Resistance designed with 1 point of guying

20AVM
