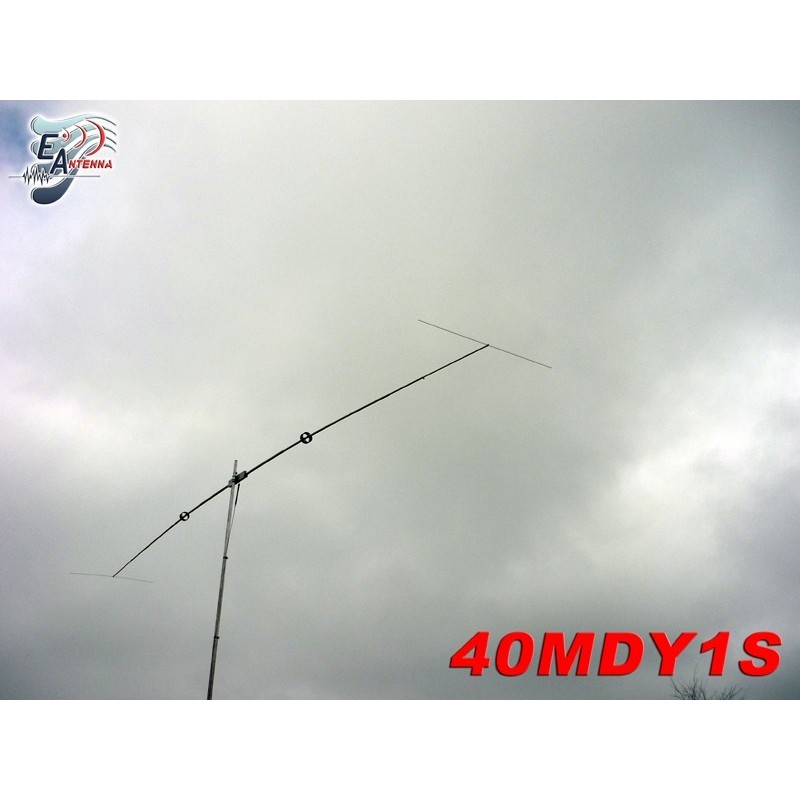

EANTENNA 40MDY1S DIPOLO ROTATIVO 1 EL. 40M

EANTENNA 40MDY1S DIPOLO ROTATIVO 1 EL. 40M DIPOLI ROTATIVI

EANTENNA 40MDY1S DIPOLO ROTATIVO 1 EL. 40M

385,56 €
IVA inclusa
EANTENNA
40MDY1S
Quantità
In pronta consegna

SPECIFICATION EAntenna 40MDY1S
Frequency Range: 7,0~7,3 MHz.
Gain: (dBi) 2,00 dBi *
Gain: (dBi) 7,50 dBi **
Wideband: <2,0:1: 150 kHz
SWR: 1,0:1~2,0:1
Impedance: 50 Ohm
Max. Power: 10 kW. ***
Total Length: 10,43m. / 31,18'
Turning Radius: 5,22m / 17,11'
Wind Survival: ≥ 160kmh / ≥ 100mph
Weight: 9,0 Kg / 19,9 Pounds
Package dimensions: (W x H x L) 17x17X141 cm / 6,7x6,7x55,5 "

* Gain dBi (Gain over isotropic in free space).
** Gain dBi at 20m above ground.
*** 3 kW Balun included, there are options of 5 and 10 kW.

CONTRUCTION DETAILS

rigidos-30-80

ELEMENTS DIAMETERS ELEMENTS PLATES
A = 35/30/25/2016/5mm Ø A = 100mm C = 40
B = 2/1,5mm B = 4mm

40MDY1S
