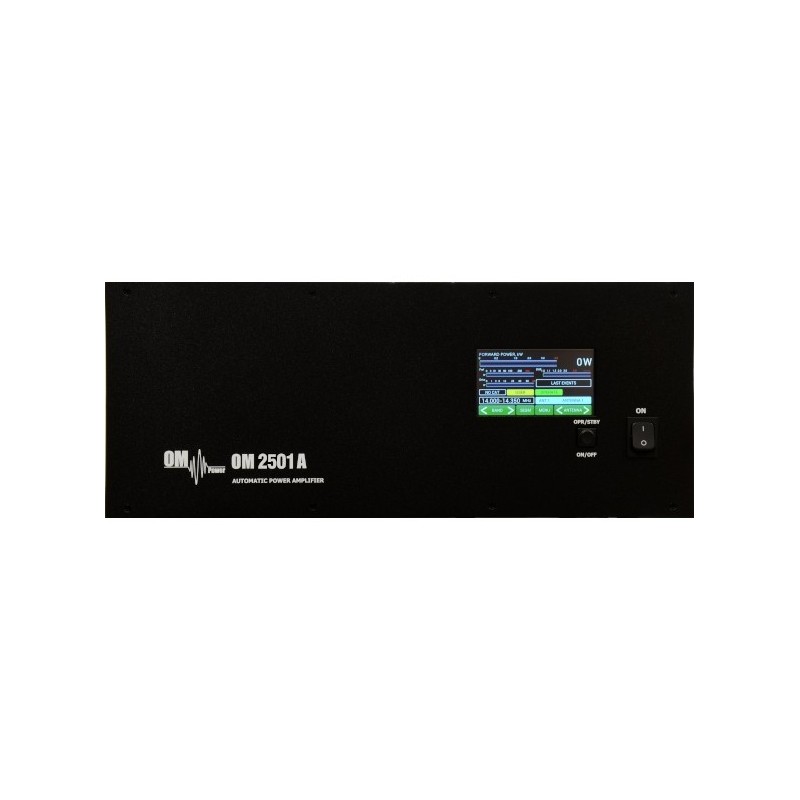

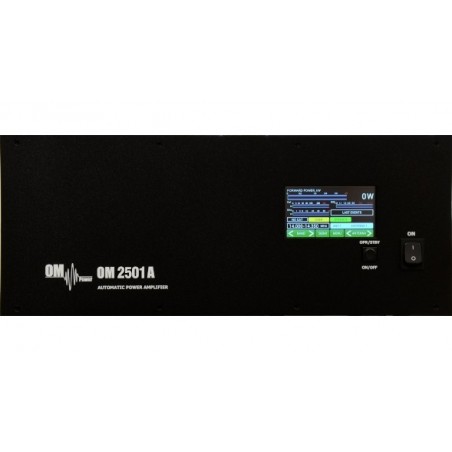

Specification of OM2501A:

Frequency coverage:Amateur Bands 1.8 – 29.7 MHz including WARC
Power output:2500 W in SSB and CW on HF bands,
2000W in RTTY/FM
Input Power:30 to 60W for full output power
Input Impedance:50 Ohm, VSWR < 1.5 : 1
Power Gain:17 dB
Output Impedance:50 Ohm unbalanced
Maximum Output SWR:3:1
SWR protection:Automatic switching to STBY when reflected power is 350W or higher
Intermodulation distortion:better than -32dBc
Suppression of harmonics:< -50 dBc
Tube:1x FU-728F or GU84B ceramic tetrode
Cooler:Centrifugal blower + Axial blower
Response speed of AUTO tune:less than 0,5s within same BAND, less than 2s if out of BAND
Power supply:switchable voltages - 220/230/240V for 50Hz or 230/240/250V for 60Hz
(or other primary voltages e.g. 200V 50/60Hz for Japan)
Transformers:2 pcs of toroidal transformer 2kVA
Dimensions:485 x 200 x 455mm (width x height x depth)
Weight:40 kg
Protection circuits:- VSWR too high
- Anode current too high
- Anode voltage error
- Screen current too high
- Screen voltage error
- Grid current too high
- Grid voltage error
- Heating voltage error
- Mistuning of PA
- Temperature too high
- Soft start for protecting your fuses
- “switch-on blocking“ at opened amplifier
Indications:4.3" color touch screen display
Features:High level of protection
Memory for faults and warnings, easy maintenance
Automatic set-up anode current (BIAS) – no need to manually adjust after changing the tube
Three programmable working modes of the axial blower
Full QSK operation
Many operational parameters to display
REMOTE control - connector for LAN connection – remote control software free of charge
Support automatic external ANT switching
